ASTM A588 H Beam
Classification :
PRODUCT DETAILS
Product introduction
ASTM A588 Steel Beam
Hot rolled ASTM A588 steel beam
ASTM A588 H Beam not only enjoys high tensile & yield strength but also exhibits good resistance against atmospheric corrosion for its small copper content. Given its high strength, it weighs less than A36 steel section without a reduction in strength. At the same time, it is the best material for outdoor applications and shows orange-brown surface.
Product description:
- Item: ASTM A588 Steel Beam.
- Technology: hot rolled.
- Surface treatment: black, galvanized or primed.
- Sizes: IPN & IPE european standard.
- Web width: 42 - 215 mm.
- Depth: 80 - 600 mm.
- Web thickness: 3.8 - 21.6 mm.
- Note: Special steel beam sizes are customized on order.
Technical data
| Steel grade | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % | Nickel, max, % | Chromium, % | Copper | Vanadium, % |
| A588 grade A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
| Steel grade | Styles | Tensile Sstrength, ksi [MPa] | Yield point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| A588 grade A | Steel angles | 70 [485] | 50 [345] | 18 | 21 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |
ASTM A588 applications:
As a result of A588 steel beam bearing copper content, it is very suitable for outdoor applications for its excellent atmospheric corrosion resistance.
- Bridges, buildings & construction equipment.
- Frame for cars and machinery.
- Transmission & communication towers.
Storage video
Warehouse storage
The company mainly engaged in steel production, sales and other businesses. The main products include all kinds of steel plate, steel pipe, bar, profile and other materials and section steel. At the same time is a number of domestic large steel mill level agents, with a certain price advantage.

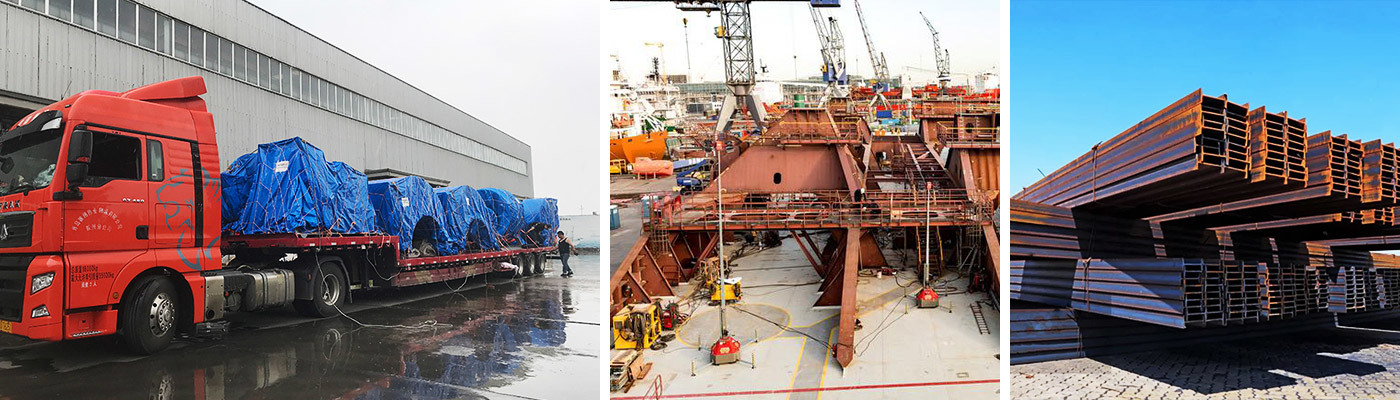

Packing and delivery
